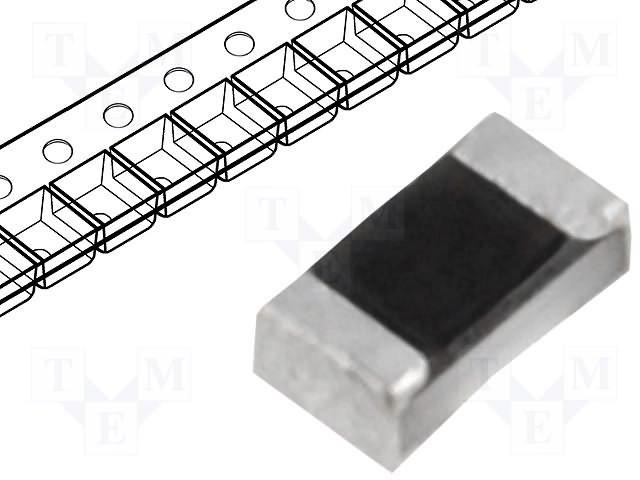

RC0402JR-07240RL
Manufacturer
Yageo
Description
Res Thick Film 0402 240 Ohm 5% 1/16W 100ppm/C Molded SMD SMD Paper T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Contact Plating
Depth
Features
Height
Lead Free
Length
Max Operating Temperature
Max Power Dissipation
Military Standard
Min Operating Temperature
Mount
Number of Terminations
Packaging
Power Rating
Radiation Hardening
Resistance
RoHS
Schedule B
Temperature Coefficient
Termination
Tolerance
Voltage Rating
Voltage Rating (DC)
Width
Description
0402
0402
1005
Thick Film
Tin
500 µm
Moisture Resistant
406.4 µm
Lead Free
1 mm
155 °C
63 mW
Not
-55 °C
Surface Mount
2
Cut Tape (CT)
62.5 mW
No
240 Ω
Compliant
8533210045, 8533210045|8533210045|8533210045|8533210045|8533210045
100 ppm/°C
SMD/SMT
5 %
50 V
50 V
508 µm
