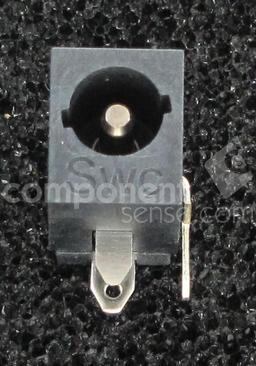

RAPC712BK

Manufacturer

Switchcraft

Description

Connector right angle miniature lockingpower jack pc mount 0.1 in pin

Datasheet

download datasheetDownload

Product Attributes

Type

Color

Connector Type

Contact Material

Contact Plating

Current Rating

Depth

Gender

Housing Color

Housing Material

Lead Free

Length

Max Current Rating

Mount

Number of Contacts

Number of Ports

Number of Terminals

Orientation

REACH SVHC

RoHS

Shielding

Termination

Voltage Rating (AC)

Width

Description

Black

Power

Brass

Nickel, Silver, Tin

5 A

14.5 mm

Male

Black

Thermoplastic

Contains Lead

9.4 mm

5 A

PCB, Through Hole

2

1

2

Right Angle

Unknown

Compliant

Unshielded

Solder

250 V

9 mm
