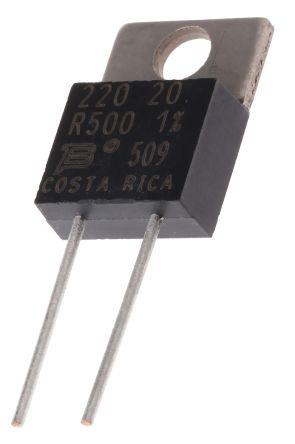

PWR220T-20-R500F
Manufacturer
Bourns
Description
Res Thick Film 500m Ohm 1% 20W 100ppm/C Ceramic 2TO-220 RDL Thru-Hole Tube
Datasheet
DownloadProduct Attributes
Type
Case/Package
Composition
Depth
Features
Height
Lead Diameter
Lead Pitch
Length
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Pins
Number of Terminations
Power Rating
REACH SVHC
Resistance
RoHS
Schedule B
Temperature Coefficient
Terminal Pitch
Termination
Threshold Voltage
Tolerance
Voltage Rating
Voltage Rating (DC)
Weight
Width
Description
TO-220-2
Thick Film
4 mm
Automotive AEC-Q200
14.6 mm
720 µm
5.08 mm
10.1 mm
155 °C
20 W
-55 °C
Through Hole
2
2
20 W
No SVHC
500 mΩ
Compliant
8533210090, 8533210090|8533210090, 8533210090|8533210090|8533210090, 8533210090|8533210090|8533210090|8533210090
100 ppm/°C
5.08 mm
Radial
3.2 V
1 %
2 kV
250 V
1.749988 g
3.9878 mm
