PMEG3010CEJ,115
Manufacturer
Nexperia
Description

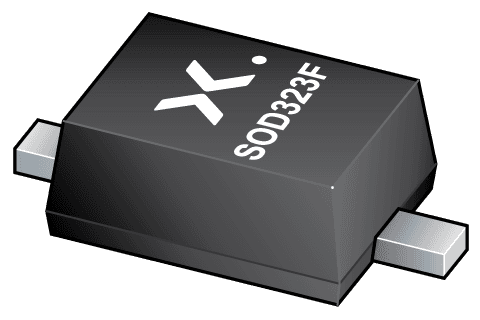

Rectifier Diode Schottky 30V 1A Automotive 2-Pin SOD-323F T/R
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Average Rectified Current
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Leakage Current
Max Reverse Voltage (DC)
Max Surge Current
Min Operating Temperature
Mount
Number of Pins
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Radiation Hardening
REACH SVHC
Reverse Voltage
RoHS
Schedule B
Termination
Width
Description
150 °C
1 A
Single
1 A
520 mV
800 µm
Lead Free
1.8 mm
Production (Last Updated: 1 day ago)
RELEASED FOR SUPPLY (Last Updated: 1 day ago)
10 A
150 °C
150 °C
830 mW
30 V
50 µA
30 V
10 A
-65 °C
Surface Mount
2
Digi-Reel®
10 A
50 µA
No
No SVHC
30 V
Compliant
8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050, 8541100080
SMD/SMT
1.35 mm
In Stock
Quantity
MOQ : 3
Per Unit Price
₹35.57
Total Price
₹106.70
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹106.70
₹106.70
10
₹14.14
₹141.38
25
₹14.17
₹354.35
50
₹14.17
₹708.69
100
₹7.90
₹789.61
500
₹7.90
₹3948.94
1000
₹6.23
₹6227.40
