PIC16F1509-I/SO
Manufacturer
Microchip
Description

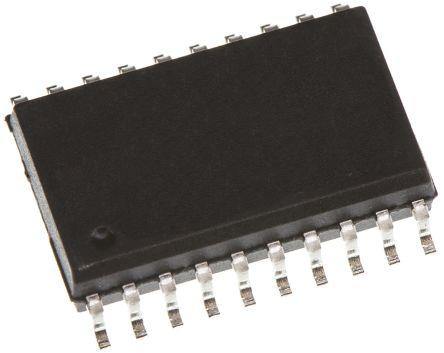

PIC16F1509-I/SO; 8bit PIC Microcontroller; 20MHz; 8192 words Flash; 20-Pin SOIC
Datasheet
DownloadProduct Attributes
Type
Address Bus Width
Case/Package
Core Architecture
Data Bus Width
Frequency
Height
Interface
Lead Free
Length
Lifecycle Status
Max Frequency
Max Operating Temperature
Max Power Dissipation
Max Supply Voltage
Memory Size
Memory Type
Min Operating Temperature
Min Supply Voltage
Nominal Supply Current
Number of ADC Channels
Number of I2C Channels
Number of I/Os
Number of Pins
Number of Programmable I/O
Number of PWM Channels
Number of SPI Channels
Number of Timers/Counters
Oscillator Type
Peripherals
Radiation Hardening
RAM Size
REACH SVHC
RoHS
Schedule B
Watchdog Timer
Width
Description
8 b
SOIC
PIC
8 b
20 MHz
2.05 mm
I2C, LIN, SPI, UART, USART
Lead Free
12.8 mm
Production (Last Updated: 2 years ago)
20 MHz
85 °C
800 mW
5.5 V
14 kB
FLASH
-40 °C
2.3 V
850 µA
12
1
17
20
18
4
1
3
Internal
Brown-out Detect/Reset, I2C, POR, PWM, WDT
No
512 B
No SVHC
Compliant
8542310000
Yes
7.5 mm
