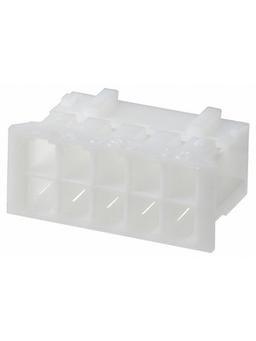

PHDR-10VS
Manufacturer
JST
Description
Connector, PHD Series, 10 Position, 2.0mm, 28-22 AWG, Free Hanging, Crimp, Natural
Datasheet
DownloadProduct Attributes
Type
Connector Type
Contact Material
Contact Plating
Current Rating
Depth
Gender
Height
Housing Material
Lead Free
Lead Pitch
Length
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Min Operating Temperature
Mount
Number of Contacts
Number of Pins
Number of Positions
Number of Rows
Orientation
Packaging
Pitch
REACH SVHC
RoHS
Row Spacing
Termination
Voltage Rating
Width
Wire Gauge (Max)
Wire Gauge (Min)
Description
Receptacle, Socket
Brass
Tin
3 A
7.3 mm
Receptacle
7.3 mm
Polyamide
Lead Free
2 mm
11.9 mm
3 A
85 °C
250 V
-25 °C
Free Hanging
10
10
10
2
Straight
Bulk
2 mm
Unknown
Compliant
2.0066 mm
Crimp
250 V
5 mm
28 AWG
22 AWG
In Stock
Quantity
MOQ : 4
Per Unit Price
₹29.34
Total Price
₹117.38
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹117.38
₹117.38
10
₹20.99
₹209.85
25
₹21.04
₹525.96
50
₹20.95
₹1047.48
100
₹18.24
₹1823.75
500
₹17.06
₹8531.87
1000
₹16.00
₹15998.49
