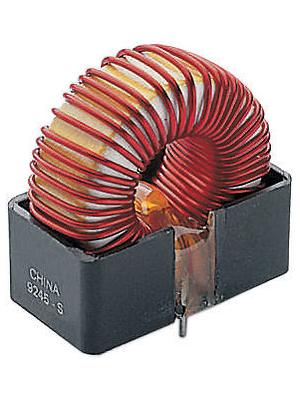

PE-53115NL
Manufacturer
Pulse
Description
Inductor Power Toroid 136uH/150u(Rated)H 20% 3A 100mOhm DCR RDL
Datasheet
DownloadProduct Attributes
Type
Case/Package
Current Rating
DC Current
DC Resistance (DCR)
Depth
Flammability Rating
Height
Inductance
Inductance Tolerance
Lead/Base Style
Lead Diameter
Lead Pitch
Length
Lifecycle Status
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Circuits
Number of Pins
Number of Terminals
Orientation
Packaging
Radiation Hardening
REACH SVHC
Resistance
RMS Current (Irms)
RoHS
Schedule B
Series Resistance
Shielding
Termination
Test Frequency
Tolerance
Width
Description
Radial
3 A
3 A
100 mΩ
15.5 mm
UL94 V-0
27.94 mm
136 µH
20 %
Radial
635 µm
11.44 mm
24.64 mm
Production (Last Updated: 7 months ago)
3 A
130 °C
Not
-40 °C
Radial, Through Hole
1
2
2
Vertical
Bulk
No
Yes
100 mΩ
3 A
Compliant
8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000
100 mΩ
No
Radial
20 kHz
20 %
15.5 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹287.21
Total Price
₹287.21
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹287.21
₹287.21
10
₹179.17
₹1791.74
25
₹179.19
₹4479.79
50
₹179.17
₹8958.69
100
₹179.18
₹17918.27
500
₹179.18
₹89591.35
1000
₹174.92
₹174917.20
