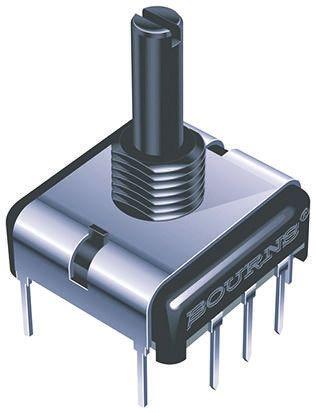

PCW1J-B24-KAB502L

Manufacturer

Bourns

Description

Slimline Linear Rotary Potentiometer 5000 Ohms Plus or Minus 20 Percent Tolerance

Datasheet

download datasheetDownload

Product Attributes

Type

Actuator Diameter

Actuator Length

Composition

Depth

Diameter

Height

Lifecycle Status

Max Operating Temperature

Max Power Dissipation

Military Standard

Min Operating Temperature

Mount

Number of Gangs

Number of Terminals

Number of Turns

Packaging

Power Dissipation

Power Rating

Radiation Hardening

REACH SVHC

Resistance

RoHS

Schedule B

Taper

Temperature Coefficient

Termination

Tolerance

Type

Voltage Rating

Voltage Rating (AC)

Voltage Rating (DC)

Weight

Width

Description

6.35 mm

19.05 mm

Conductive Plastic

22.22 mm

6.35 mm

8.31 mm

Production (Last Updated: 7 months ago)

125 °C

750 mW

Not

1 °C

Brackets, Panel, Through Hole

1

3

1

Bulk

750 mW

750 mW

No

Yes

5 kΩ

Compliant

8533400080, 8533400080|8533400080|8533400080|8533400080|8533400080

Linear

1000 ppm/°C

Pin

20 %

Potentiometer

350 V

350 V

350 V

21 g

17.07 mm

In Stock

Quantity

MOQ : 1

decrement quantity
increment quantity

Per Unit Price

₹576.20

Total Price

₹576.20

delivery

Ships in 7-10 days from Bengaluru

Add to List

Quantity

Unit Price

Ext. Price

1

₹576.20

₹576.20

10

₹412.77

₹4127.67

25

₹412.77

₹10319.17

50

₹412.75

₹20637.44

100

₹411.70

₹41169.96
