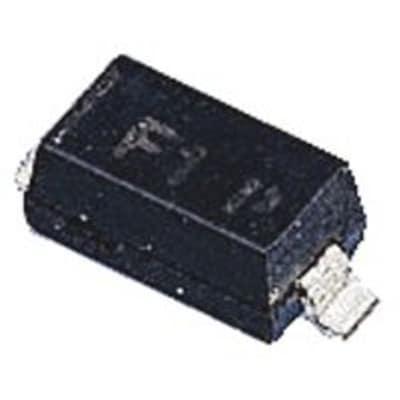

MMSZ5243B-7-F
Manufacturer
Diodes Inc.
Description
Zener Diode Single 13V 5% 13Ohm 500mW 2-Pin SOD-123 T/R / DIODE ZENER 13V 500MW SOD123
Datasheet
DownloadProduct Attributes
Type
Case/Package
Element Configuration
Forward Voltage
Height
Impedance
Lead Free
Length
Max Operating Temperature
Max Power Dissipation
Max Reverse Leakage Current
Min Operating Temperature
Mount
Number of Pins
Packaging
Peak Reverse Current
Power Dissipation
Power Rating
Radiation Hardening
RoHS
Schedule B
Termination
Test Current
Tolerance
Voltage Rating (DC)
Voltage Tolerance
Weight
Width
Working Voltage
Zener Current
Zener Voltage
Description
SOD-123-2
Single
900 mV
1.35 mm
13 Ω
Lead Free
2.85 mm
150 °C
500 mW
500 nA
-65 °C
Surface Mount
2
Cut Tape
500 nA
500 mW
500 mW
No
Compliant
8541100050, 8541100050|8541100050|8541100050|8541100050|8541100050
SMD/SMT
9.5 mA
5 %
13 V
5 %
10.007382 mg
1.7 mm
13 V
500 nA
13 V
In Stock
Quantity
MOQ : 9
Per Unit Price
₹11.56
Total Price
₹104.04
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹104.04
₹104.04
10
₹10.47
₹104.66
25
₹9.48
₹236.97
50
₹9.50
₹474.83
100
₹4.37
₹437.49
500
₹4.37
₹2186.54
1000
₹4.16
₹4159.68
