MMSZ5226B-7-F
Manufacturer
Diodes Inc.
Description

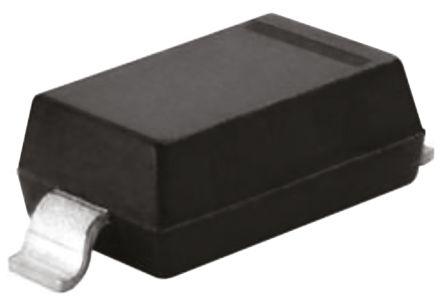

MMSZ5226B-7 Series 500 mW 3.3 V 10 mA Surface Mount Zener Diode - SOD-123
Datasheet
DownloadProduct Attributes
Type
Case/Package
Element Configuration
Forward Current
Forward Voltage
Height
Impedance
Lead Free
Length
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Max Reverse Leakage Current
Min Operating Temperature
Mount
Number of Pins
Packaging
Peak Reverse Current
Power Dissipation
Power Rating
Radiation Hardening
Reverse Voltage
RoHS
Schedule B
Termination
Test Current
Tolerance
Voltage Rating (DC)
Voltage Tolerance
Weight
Width
Working Voltage
Zener Current
Zener Voltage
Description
SOD-123-2
Single
10 mA
900 mV
1.35 mm
28 Ω
Lead Free
3.85 mm
150 °C
150 °C
500 mW
25 µA
-65 °C
Surface Mount
2
Cut Tape
25 µA
500 mW
500 mW
No
1 V
Compliant
8541100050, 8541100050|8541100050|8541100050|8541100050|8541100050
SMD/SMT
20 mA
5 %
3.3 V
5 %
10.007382 mg
1.7 mm
3.3 V
25 µA
3.3 V
Product Attributes
Type
Case/Package
Element Configuration
Forward Current
Forward Voltage
Height
Impedance
Lead Free
Length
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Max Reverse Leakage Current
Min Operating Temperature
Mount
Number of Pins
Packaging
Peak Reverse Current
Power Dissipation
Power Rating
Radiation Hardening
Reverse Voltage
RoHS
Schedule B
Termination
Test Current
Tolerance
Voltage Rating (DC)
Voltage Tolerance
Weight
Width
Working Voltage
Zener Current
Zener Voltage
Description
SOD-123-2
Single
10 mA
900 mV
1.35 mm
28 Ω
Lead Free
3.85 mm
150 °C
150 °C
500 mW
25 µA
-65 °C
Surface Mount
2
Cut Tape
25 µA
500 mW
500 mW
No
1 V
Compliant
8541100050, 8541100050|8541100050|8541100050|8541100050|8541100050
SMD/SMT
20 mA
5 %
3.3 V
5 %
10.007382 mg
1.7 mm
3.3 V
25 µA
3.3 V
