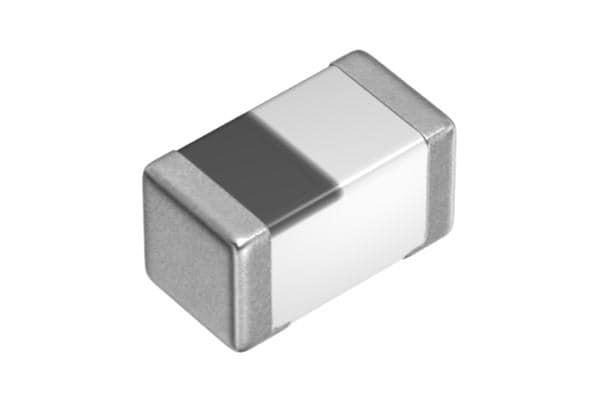

MLG0603P3N9ST000

Manufacturer

TDK

Description

Inductor High Frequency Chip Unshielded Multi-Layer 3.9nH 0.3nH 500MHz 14Q-Factor Ceramic 400mA 300mOhm DCR 0201 T/R

Datasheet

download datasheetDownload

Product Attributes

Type

Case/Package

Case Code (Imperial)

Case Code (Metric)

Core Material

Current Rating

DC Resistance (DCR)

Height - Seated (Max)

Inductance

Length

Lifecycle Status

Manufacturer Lifecycle Status

Max Operating Temperature

Min Operating Temperature

Mount

Packaging

RoHS

Self Resonant Frequency

Shielding

Test Frequency

Width

Description

0201

0201

0603

Non-Magnetic

400 mA

300 mΩ

330.2 µm

3.9 nH

609.6 µm

Production (Last Updated: 2 years ago)

PRODUCTION (Last Updated: 2 years ago)

125 °C

-55 °C

Surface Mount

Tape & Reel (TR)

Compliant

5.8 GHz

Unshielded

500 MHz

304.8 µm

Loading...

Product Attributes

Type

Case/Package

Case Code (Imperial)

Case Code (Metric)

Core Material

Current Rating

DC Resistance (DCR)

Height - Seated (Max)

Inductance

Length

Lifecycle Status

Manufacturer Lifecycle Status

Max Operating Temperature

Min Operating Temperature

Mount

Packaging

RoHS

Self Resonant Frequency

Shielding

Test Frequency

Width

Description

0201

0201

0603

Non-Magnetic

400 mA

300 mΩ

330.2 µm

3.9 nH

609.6 µm

Production (Last Updated: 2 years ago)

PRODUCTION (Last Updated: 2 years ago)

125 °C

-55 °C

Surface Mount

Tape & Reel (TR)

Compliant

5.8 GHz

Unshielded

500 MHz

304.8 µm
