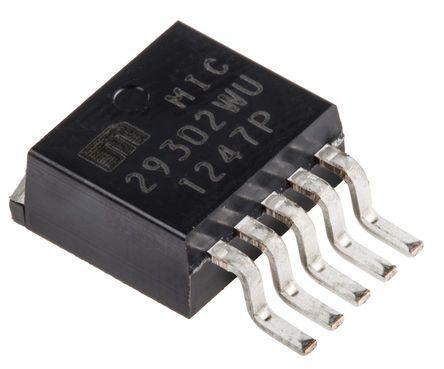

MIC29302AWU-TR
Manufacturer
Microchip
Description
LDO Regulator Pos 1.24V to 15V 3A 6-Pin(5+Tab) TO-263 T/R / IC REG LDO ADJ 3A TO263-5
Datasheet
DownloadProduct Attributes
Type
Accuracy
Case/Package
Dropout Voltage
Height
Input Bias Current
Lead Free
Length
Lifecycle Status
Max Input Voltage
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Current
Max Supply Voltage
Manufacturer Package Identifier
Min Current Limit
Min Input Voltage
Min Operating Temperature
Min Output Voltage
Min Supply Voltage
Mount
Number of Outputs
Number of Pins
Number of Regulators
Output Current
Output Type
Output Voltage
Packaging
Reference Voltage
RoHS
Schedule B
Width
Description
2 %
TO-263-5
450 mV
4.902 mm
40 nA
Lead Free
11.1 mm
Production (Last Updated: 2 years ago)
26 V
125 °C
125 °C
3 A
16 V
T0263-5LD-PL-1
3 A
3 V
-40 °C
1.24 V
3 V
Surface Mount
1
5
1
3 A
Adjustable
15 V
Cut Tape
1.24 V
Compliant
8542390000
4.6 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹234.40
Total Price
₹234.40
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹234.40
₹234.40
10
₹234.41
₹2344.05
25
₹195.20
₹4880.00
50
₹195.20
₹9760.01
100
₹190.29
₹19028.88
500
₹190.29
₹95144.40
