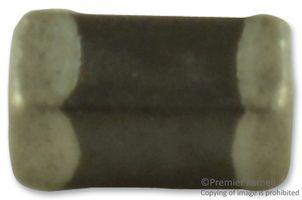

MH2029-300Y
Manufacturer
Bourns
Description
Ferrite Beads High Current Chip 30Ohm 25% 100MHz 3A 0.025Ohm DCR 0805 T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Core Material
DC Resistance (DCR)
Depth
Height
Impedance
Length
Max Current Rating
Max DC Current
Max Operating Temperature
Min Operating Temperature
Mount
Number of Lines
Number of Pins
Packaging
REACH SVHC
Resistance
RMS Current (Irms)
RoHS
Schedule B
Series Resistance
Shielding
Termination
Test Frequency
Tolerance
Width
Description
0805
1206
3216
Ferrite
25 mΩ
1.4 mm
1.1 mm
30 Ω
2.0066 mm
3 A
3 A
125 °C
-55 °C
Surface Mount
1
2
Digi-Reel®
No SVHC
30 Ω
3 A
Compliant
8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000
25 mΩ
Unshielded
SMD/SMT
100 MHz
25 %
1.1938 mm
