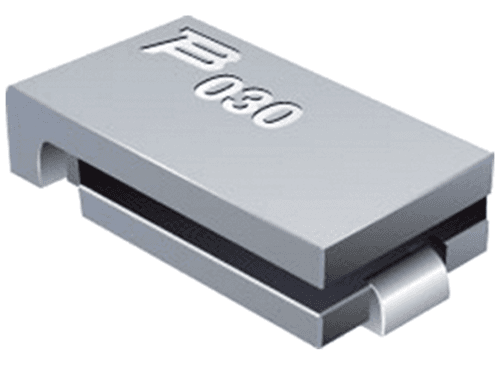

MF-SM150-2
Manufacturer
Bourns
Description
PTC Resettable Fuse 1.5A(hold) 3A(trip) 15V 100A 1.9W 5s 0.06Ohm SMD Solder Pad 9.5 X 6.71 X 3mm T/R
Datasheet
DownloadProduct Attributes
Type
Approvals
Case/Package
China RoHS
Current Rating
Height
Hold Current
Lead Free
Lead Length
Lifecycle Status
Max Current Rating
Max Operating Temperature
Min Operating Temperature
Mount
Number of Pins
Number of Terminals
Operating Supply Voltage
Packaging
Power Dissipation
Radiation Hardening
REACH SVHC
Resistance
RoHS
Schedule B
Terminal Material
Termination
Time to Trip
Trip Current
Voltage Rating
Voltage Rating (DC)
Width
Working Voltage
Description
CSA, TUV, UL
SMD/SMT
Compliant
1.5 A
3 mm
1.5 A
Lead Free
430 µm
Production (Last Updated: 7 months ago)
100 A
85 °C
-40 °C
Surface Mount
2
2
15 V
Cut Tape
1.9 W
No
Yes
60 mΩ
Compliant
8536100040, 8536100040|8536100040, 8536100040|8536100040|8536100040, 8536100040|8536100040|8536100040|8536100040
Brass
SMD/SMT
5 s
3 A
15 V
15 V
6.71 mm
15 V
In Stock
Quantity
MOQ : 2
Per Unit Price
₹50.68
Total Price
₹101.37
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹101.37
₹101.37
10
₹31.57
₹315.67
25
₹31.58
₹789.61
50
₹31.57
₹1578.33
100
₹26.55
₹2655.15
500
₹24.80
₹12399.89
1000
₹21.87
₹21865.43
