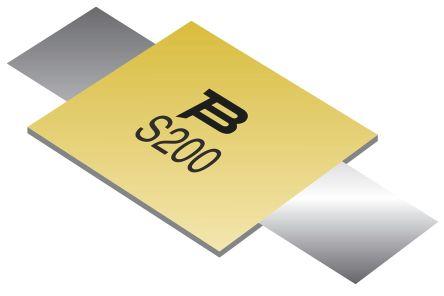

MF-S200
Manufacturer
Bourns
Description
PTC Resettable Fuse 2A(hold) 4.4A(trip) 30V 100A 1.9W 4s 0.03Ohm SMD Solder Pad 8.2 X 11 X 1.1mm Bulk
Datasheet
DownloadProduct Attributes
Type
Approvals
Case/Package
China RoHS
Height
Hold Current
Length
Lifecycle Status
Max Current Rating
Max Operating Temperature
Min Operating Temperature
Mount
Number of Terminals
Operating Supply Voltage
Packaging
Power Dissipation
Radiation Hardening
REACH SVHC
Resistance
RoHS
Schedule B
Terminal Material
Termination
Time to Trip
Trip Current
Voltage Rating
Voltage Rating (DC)
Width
Working Voltage
Description
CSA, TUV, UL
Axial
Compliant
1.1 mm
2 A
23.4 mm
Production (Last Updated: 7 months ago)
100 A
85 °C
-40 °C
Surface Mount
2
30 V
Bulk
1.9 W
No
Yes
60 mΩ
Compliant
8536100040, 8536100040|8536100040|8536100040|8536100040|8536100040
Nickel
Axial
4 s
4.4 A
30 V
30 V
11 mm
30 V
In Stock
Quantity
MOQ : 2
Per Unit Price
₹58.69
Total Price
₹117.37
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹117.37
₹117.37
10
₹42.06
₹420.59
25
₹42.01
₹1050.14
50
₹42.02
₹2101.18
100
₹37.12
₹3711.52
500
₹33.38
₹16692.06
1000
₹31.14
₹31143.34
