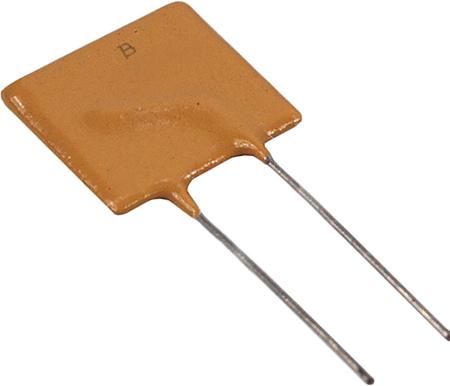

MF-R700
Manufacturer
Bourns
Description
PTC Resettable Fuse 7A(hold) 14A(trip) 30V 40A 3.8W 17.5s 0.005Ohm Radial 22.1 X 3 X 29.8mm Bulk Aut
Datasheet
DownloadProduct Attributes
Type
Approvals
Case/Package
China RoHS
Current Rating
Flammability Rating
Height
Hold Current
Lead Diameter
Lead Length
Lead Pitch
Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Pins
Number of Terminals
Operating Supply Voltage
Packaging
Power Dissipation
Radiation Hardening
REACH SVHC
Resistance
RoHS
Schedule B
Termination
Thickness
Time to Trip
Trip Current
Voltage Rating
Voltage Rating (DC)
Width
Wire/Cable Diameter
Working Voltage
Description
CSA, TUV, UL
Radial
Compliant
7 A
UL94 V-0
29.8 mm
7 A
810 µm
7.6 mm
10.2 mm
Production (Last Updated: 7 months ago)
40 A
85 °C
3.8 W
-40 °C
Through Hole
2
2
30 V
Bulk
3.8 W
No
Yes
5 mΩ
Compliant
8536100040, 8536100040|8536100040|8536100040|8536100040|8536100040
Radial
3 mm
17.5 s
14 A
30 V
30 V
3 mm
810 µm
30 V
In Stock
Quantity
MOQ : 2
Per Unit Price
₹64.02
Total Price
₹128.04
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹128.04
₹128.04
10
₹49.17
₹491.73
25
₹49.14
₹1228.43
50
₹49.17
₹2458.64
100
₹40.96
₹4095.66
500
₹37.81
₹18906.17
1000
₹34.92
₹34916.22
