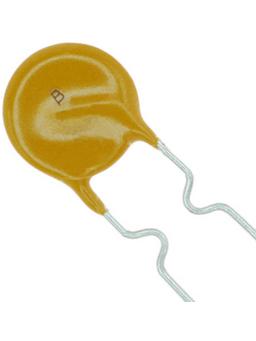

MF-R050
Manufacturer
Bourns
Description
PTC Resettable Fuse 0.5A(hold) 1A(trip) 60V 40A 0.75W 4s 0.41Ohm Radial 7.9 X 3.1mm Bulk
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Approvals
Body Material
Case/Package
Contact Plating
Current Rating
Diameter
Flammability Rating
Height
Hold Current
Lead Diameter
Lead Free
Lead Length
Lead Pitch
Max Current Rating
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Pins
Number of Terminals
Operating Supply Voltage
Packaging
Power Dissipation
REACH SVHC
Resistance
RoHS
Schedule B
Terminal Pitch
Termination
Time to Trip
Trip Current
Voltage Rating
Voltage Rating (DC)
Width
Wire/Cable Diameter
Description
85 °C
CSA, TUV, UL
Polymer
Radial
Tin
500 mA
7.9 mm
UL94 V-0
13.7 mm
500 mA
510 µm
Lead Free
7.6 mm
5.1 mm
40 A
85 °C
750 mW
-40 °C
PCB, Through Hole
2
2
60 V
Bulk
750 mW
No SVHC
770 mΩ
Compliant
8536100040, 8536100040|8536100040, 8536100040|8536100040|8536100040, 8536100040|8536100040|8536100040|8536100040
5.1 mm
Radial
4 s
1 A
60 V
60 V
7.9 mm
510 µm
