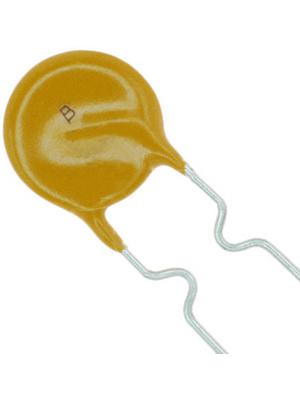

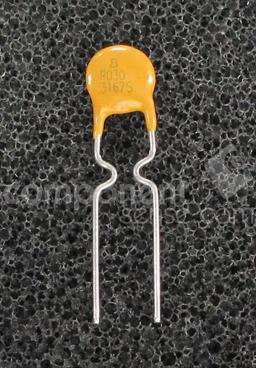

MF-R030
Manufacturer
Bourns
Description
PTC Resettable Fuse 0.3A (hold) 0.6A (trip) 60 Volt 40A 0.5 Watt 3s 0.76 Ohm Radial 7.4 X 3.1mm Bulk
Datasheet
DownloadProduct Attributes
Type
Approvals
Body Material
Case/Package
China RoHS
Contact Plating
Current Rating
Diameter
Flammability Rating
Height
Hold Current
Lead Diameter
Lead Free
Lead Length
Lead Pitch
Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Terminals
Operating Supply Voltage
Packaging
Power Dissipation
REACH SVHC
Resistance
RoHS
Schedule B
Terminal Pitch
Termination
Time to Trip
Trip Current
Voltage Rating
Voltage Rating (AC)
Voltage Rating (DC)
Width
Wire/Cable Diameter
Working Voltage
Description
CSA, TUV, UL
Polymer
Radial
Compliant
Tin
40 A
7.4 mm
UL94 V-0
13.4 mm
300 mA
510 µm
Lead Free
7.6 mm
5.1 mm
Production (Last Updated: 7 months ago)
40 A
85 °C
500 mW
-40 °C
PCB, Through Hole
2
60 V
Bulk
500 mW
Yes
760 mΩ
Compliant
8536100040, 8536100040|8536100040, 8536100040|8536100040|8536100040, 8536100040|8536100040|8536100040|8536100040
5.1 mm
Radial
3 s
600 mA
60 V
60 V
60 V
3.1 mm
510 µm
60 V
In Stock
Quantity
MOQ : 3
Per Unit Price
₹38.24
Total Price
₹114.71
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹114.71
₹114.71
10
₹24.81
₹248.09
25
₹24.84
₹621.11
50
₹24.79
₹1239.55
100
₹20.69
₹2069.17
500
₹18.24
₹9119.64
1000
₹17.07
₹17065.53
