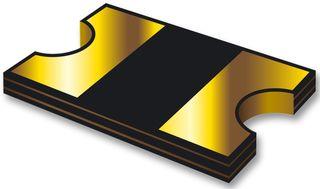

MF-PSMF050X-2
Manufacturer
Bourns
Description
PTC Resettable Fuse 0.5A(hold) 1A(trip) 6V 40A 0.5W 0.1s 0.15Ohm SMD Solder Pad 0805 T/R
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Approvals
Case/Package
Case Code (Imperial)
Case Code (Metric)
Current Rating
Height
Hold Current
Length
Max Current Rating
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Terminals
Operating Supply Voltage
Packaging
Power Dissipation
Radiation Hardening
REACH SVHC
Resistance
RoHS
Schedule B
Terminal Material
Termination
Time to Trip
Trip Current
Voltage Rating
Voltage Rating (DC)
Width
Description
85 °C
UL
0805
0805
2012
40 A
850 µm
500 mA
2.3 mm
40 A
85 °C
500 mW
-40 °C
PCB, Surface Mount
2
6 V
Cut Tape
500 mW
No
No SVHC
900 mΩ
Compliant
8536100040, 8536100040|8536100040|8536100040|8536100040|8536100040
Gold
SMD/SMT
100 ms
1 A
6 V
6 V
1.5 mm
