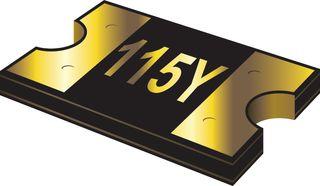

MF-NSMF012-2
Manufacturer
Bourns
Description
Fuse, Resettable, Fast Acting, 10A, Sz 1206, Dims 0.134x0.071x0.043", SMT, 30VDC, PCB
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Approvals
Case/Package
Case Code (Imperial)
Case Code (Metric)
Contact Plating
Current Rating
Height
Hold Current
Lead Free
Max Current Rating
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Pins
Number of Terminals
Operating Supply Voltage
Packaging
Power Dissipation
Radiation Hardening
REACH SVHC
Resistance
RoHS
Schedule B
Tab Width
Terminal Material
Termination
Time to Trip
Trip Current
Voltage Rating
Voltage Rating (DC)
Description
85 °C
CSA, TUV, UL
1206
1206
3216
Gold
10 A
1.1 mm
120 mA
Lead Free
10 A
85 °C
400 mW
-40 °C
PCB, Surface Mount
1206
2
30 V
Cut Tape
400 mW
No
No SVHC
8.5 Ω
Compliant
8536100040, 8536100040|8536100040, 8536100040|8536100040|8536100040, 8536100040|8536100040|8536100040|8536100040
250 µm
Gold
SMD/SMT
200 ms
290 mA
30 V
30 V
