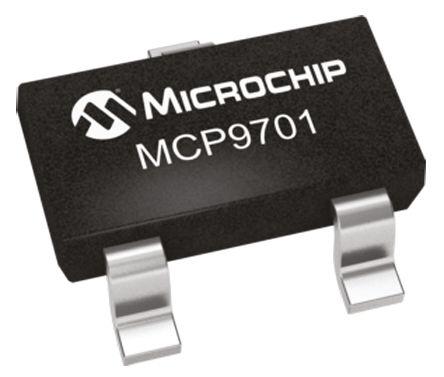

MCP9701T-E/TT

Manufacturer

Microchip

Description

Analog Output Temperature Sensor, 3.1 to 5.5V, SOT-23-3, RoHS

Datasheet

download datasheetDownload

Product Attributes

Type

Case/Package

Height

Lead Free

Length

Lifecycle Status

Max Operating Temperature

Max Output Current

Max Supply Voltage

Max Supply Voltage (DC)

Min Operating Temperature

Min Supply Voltage

Min Supply Voltage (DC)

Mount

Nominal Supply Current

Number of Bits

Number of Pins

Operating Supply Current

Output Current

Output Type

Packaging

Radiation Hardening

REACH SVHC

Resolution

RoHS

Schedule B

Width

Description

SOT-23

1.02 mm

Lead Free

3.05 mm

Production (Last Updated: 1 year ago)

125 °C

100 µA

5.5 V

5.5 V

-40 °C

3.1 V

3 V

Surface Mount

6 µA

8

3

6 µA

100 µA

Analog, Analog Voltage

Tape & Reel

No

No SVHC

1 B

Compliant

8542390000, 8542390000|8542390000, 8542390000|8542390000|8542390000, 8542390000|8542390000|8542390000|8542390000

1.4 mm

In Stock

Quantity

MOQ : 4

decrement quantity
increment quantity

Per Unit Price

₹27.09

Total Price

₹108.36

delivery

Ships in 7-10 days from Bengaluru

Add to List

Quantity

Unit Price

Ext. Price

1

₹108.36

₹108.36

10

₹27.10

₹270.96

25

₹23.70

₹592.53

50

₹23.70

₹1185.08

100

₹22.09

₹2209.42

500

₹22.09

₹11047.12

1000

₹23.46

₹23464.21
