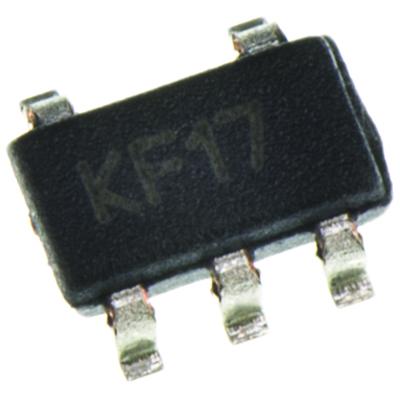

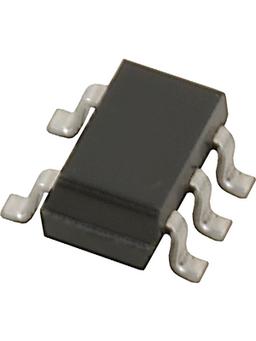

MCP73831T-2DCI/OT
Manufacturer
Microchip
Description
Microchip MCP73831T-2DCI/OT; Battery Charge Controller; 500mA; 5-Pin SOT-23
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Case/Package
Contact Plating
Height
Lead Free
Length
Lifecycle Status
Max Charge Current
Max Input Voltage
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Current
Max Output Voltage
Max Supply Voltage
Min Operating Temperature
Min Output Voltage
Min Supply Voltage
Mount
Nominal Input Voltage
Number of Cells
Number of Channels
Number of Outputs
Number of Pins
Operating Supply Current
Output Current
Output Voltage
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Width
Description
85 °C
SOT-23
Tin
1.3 mm
Lead Free
3.1 mm
Production (Last Updated: 1 year ago)
500 mA
3.75 V
125 °C
85 °C
500 mA
4.232 V
6 V
-40 °C
4.168 V
3.75 V
Surface Mount
6 V
1
1
1
5
510 µA
500 mA
4.2 V
No
No SVHC
Compliant
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
1.8 mm
