M50-3502042
Manufacturer
Harwin
Description

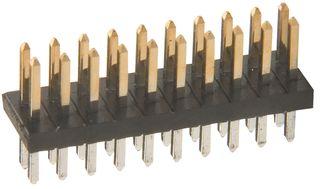

Conn Unshrouded Header HDR 40 POS 1.27mm Solder ST Thru-Hole
Datasheet
DownloadProduct Attributes
Type
Color
Contact Material
Contact Mating Length
Contact Plating
Contact Resistance
Current Rating
Depth
Gender
Housing Color
Housing Material
Insulation Resistance
Lead Pitch
Length
Material
Max Current Rating
Max Operating Temperature
Min Operating Temperature
Mount
Number of Contacts
Number of Positions
Number of Rows
Orientation
Pitch
REACH SVHC
RoHS
Row Spacing
Termination
Voltage Rating (AC)
Description
Black
Brass
2.9972 mm
Gold
30 mΩ
1 A
3.41 mm
Male
Black
Thermoplastic
1 GΩ
1.27 mm
25.4 mm
Thermoplastic
1 A
105 °C
-40 °C
Through Hole
40
40
2
Straight
1.27 mm
No SVHC
Compliant
1.27 mm
Solder
500 V
In Stock
Quantity
MOQ : 1
Per Unit Price
₹366.77
Total Price
₹366.77
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹366.77
₹366.77
10
₹345.63
₹3456.32
25
₹345.67
₹8641.69
50
₹345.69
₹17284.27
100
₹345.68
₹34567.65
500
₹346.64
₹173317.53
