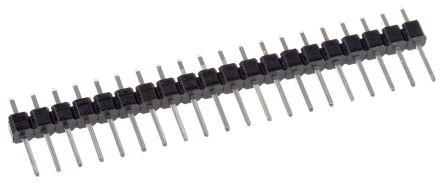

M20-9992046
Manufacturer
Harwin
Description
Board-To-Board Connector, M20 Series, Through Hole, Header, 20, 2.54 Mm, Tin Plated Contacts Rohs Compliant: Yes
Datasheet
DownloadProduct Attributes
Type
Case/Package
Color
Connector Type
Contact Material
Contact Mating Length
Contact Plating
Contact Resistance
Current Rating
Depth
Gender
Housing Color
Housing Material
Insulation Resistance
Lead Pitch
Length
Max Current Rating
Max Operating Temperature
Min Operating Temperature
Mount
Number of Contacts
Number of Positions
Number of Rows
Orientation
Pitch
REACH SVHC
RoHS
Termination
Voltage Rating (AC)
Voltage Rating (DC)
Description
SIL
Black
Male Pin
Brass, Bronze
6.096 mm
Tin
30 mΩ
3 A
2.54 mm
Male
Black
Nylon
10 GΩ
2.54 mm
50.8 mm
3 A
105 °C
-40 °C
Through Hole
20
20
1
Straight
2.54 mm
No SVHC
Compliant
Solder
750 V
750 V
