M20-9990645
Manufacturer
Harwin
Description

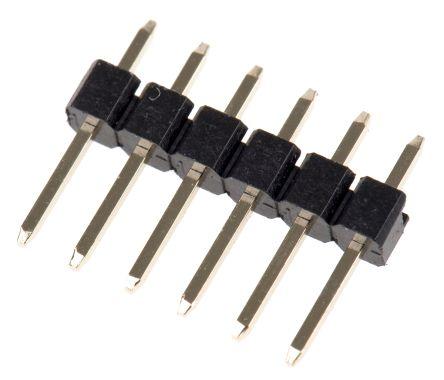

Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Bulk/Loose
Datasheet
DownloadProduct Attributes
Type
Case/Package
Color
Connector Type
Contact Material
Contact Mating Length
Contact Plating
Current Rating
Depth
Gender
Height
Housing Color
Housing Material
Insulation Material
Insulation Resistance
Lead Pitch
Length
Max Current Rating
Max Operating Temperature
Min Operating Temperature
Mount
Number of Contacts
Number of Pins
Number of Positions
Number of Rows
Orientation
Pitch
Radiation Hardening
REACH SVHC
RoHS
Termination
Voltage Rating (AC)
Voltage Rating (DC)
Weight
Width
Description
SIL
Black
Male Pin
Gold, Nickel
6.096 mm
Gold
3 A
2.54 mm
Male
9.14 mm
Black
Nylon
Polyester
10 GΩ
2.54 mm
15.24 mm
3 A
105 °C
-40 °C
Through Hole
6
6
6
1
Straight
2.54 mm
No
No SVHC
Compliant
Solder
750 V
750 V
45.359237 g
12.7 mm
In Stock
Quantity
MOQ : 3
Per Unit Price
₹37.35
Total Price
₹112.04
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹112.04
₹112.04
10
₹21.05
₹210.51
25
₹21.05
₹526.27
50
₹21.05
₹1052.54
100
₹20.03
₹2003.37
500
₹17.37
₹8687.48
1000
₹16.34
₹16339.05
