M20-8770842
Manufacturer
Harwin
Description

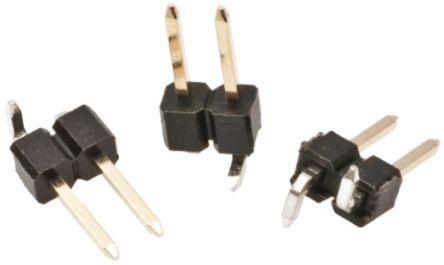

2.54MM M20 SMT Connectors 08 Sil Vertical SMT Header Gold+tin
Datasheet
DownloadProduct Attributes
Type
Case/Package
Color
Connector Type
Contact Material
Contact Mating Length
Contact Plating
Contact Resistance
Current Rating
Depth
Gender
Housing Color
Housing Material
Lead Pitch
Length
Max Current Rating
Max Operating Temperature
Min Operating Temperature
Mount
Number of Contacts
Number of Pins
Number of Positions
Number of Rows
Packaging
Pitch
REACH SVHC
RoHS
Termination
Description
SIL
Black
Male Pin
Brass
5.7912 mm
Gold
25 mΩ
3 A
2.54 mm
Male
Black
Nylon
2.54 mm
20.32 mm
3 A
105 °C
-40 °C
Surface Mount
8
8
8
1
Bulk
5.08 mm
No SVHC
Compliant
Solder
In Stock
Quantity
MOQ : 2
Per Unit Price
₹56.02
Total Price
₹112.04
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹112.04
₹112.04
10
₹46.33
₹463.27
25
₹46.27
₹1156.85
50
₹46.29
₹2314.59
100
₹37.70
₹3770.21
500
₹32.68
₹16340.83
1000
₹32.21
₹32210.38
