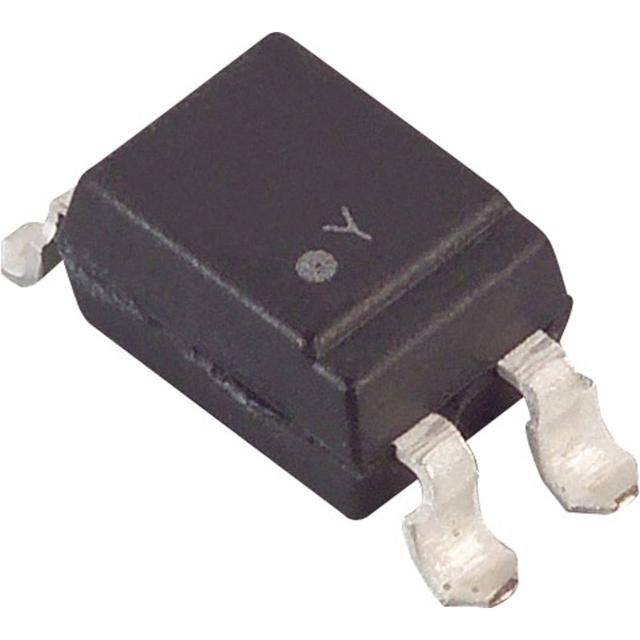

LTV-816S
Manufacturer
Lite-On
Description
LTV Series Single Channel 80 V 5000 Vrms Transistor Output Optocoupler SMT-DIP-4
Datasheet
DownloadProduct Attributes
Type
Case/Package
Collector Emitter Saturation Voltage
Collector Emitter Voltage (VCEO)
Current Transfer Ratio
Fall Time
Forward Current
Forward Voltage
Height
Isolation Voltage
Lead Free
Max Collector Current
Max Input Current
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Voltage
Max Power Dissipation
Min Operating Temperature
Mount
Number of Channels
Number of Circuits
Number of Elements
Number of Pins
Output Current per Channel
Output Voltage
Power Dissipation
Radiation Hardening
Reverse Breakdown Voltage
Reverse Voltage
Rise Time
RoHS
Schedule B
Description
SMD/SMT
200 mV
80 V
320 %
18 µs
20 mA
1.2 V
4.6 mm
5 kV
Lead Free
50 mA
50 mA
125 °C
110 °C
80 V
200 mW
-50 °C
Surface Mount
1
1
1
4
50 mA
80 V
200 mW
No
6 V
6 V
18 µs
Compliant
8541408000, 8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|85
