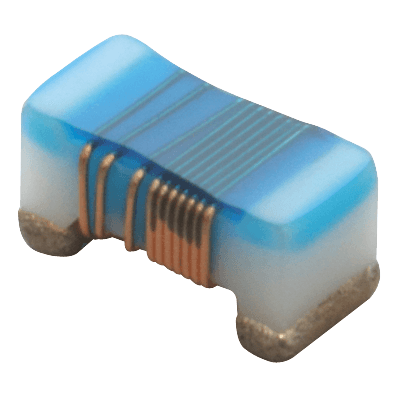

LQW18AN3N9D00D
Manufacturer
Murata
Description
Inductor RF Chip Wirewound 3.9nH 0.5nH 100MHz 35Q-Factor 850mA 59mOhm DCR 0603 Paper T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Core Material
Current Rating
DC Current
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Q Factor
Radiation Hardening
Resistance
RMS Current (Irms)
RoHS
Schedule B
Self Resonant Frequency
Series Resistance
Shielding
Termination
Test Frequency
Weight
Width
Description
0603
0603
1608
Wirewound
Non-Magnetic
850 mA
850 mA
59 mΩ
1 mm
1 mm
990.6 µm
3.9 nH
Lead Free
1.6 mm
Production (Last Updated: 4 years ago)
IN PRODUCTION (Last Updated: 4 years ago)
850 mA
125 °C
Not
-55 °C
Surface Mount
35
No
59 mΩ
850 mA
Compliant
8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000
6 GHz
59 mΩ
Unshielded
SMD/SMT
100 MHz
3.005049 mg
800 µm
In Stock
Quantity
MOQ : 9
Per Unit Price
₹11.56
Total Price
₹104.04
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹104.04
₹104.04
10
₹10.34
₹103.44
25
₹9.40
₹235.10
50
₹9.40
₹470.19
100
₹7.30
₹730.48
500
₹7.06
₹3532.44
1000
₹6.60
₹6601.42
