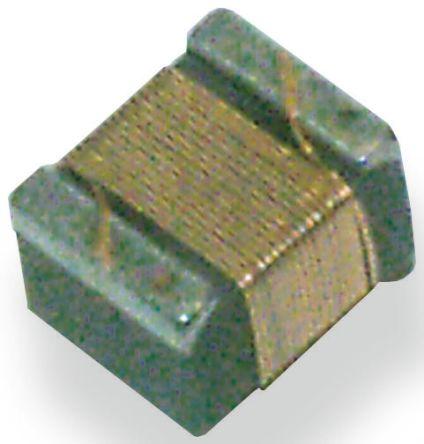

LQW15AN5N6C10D
Manufacturer
Murata
Description
Inductor RF Chip Wirewound 5.6nH 0.2nH 100MHz 30Q-Factor 800mA 51mOhm DCR 0402 Paper T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Core Material
Current Rating
DC Current
DC Resistance (DCR)
Depth
Height
Inductance
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Pins
Packaging
Q Factor
Radiation Hardening
REACH SVHC
Resistance
RMS Current (Irms)
RoHS
Schedule B
Self Resonant Frequency
Series Resistance
Shielding
Termination
Test Frequency
Weight
Width
Description
0402
0402
1005
Wirewound
Air, Non-Magnetic
800 mA
800 mA
51 mΩ
700 µm
500 µm
5.6 nH
Lead Free
1 mm
Production (Last Updated: 1 month ago)
IN PRODUCTION (Last Updated: 1 month ago)
800 mA
125 °C
Not
-55 °C
Surface Mount
2
Cut Tape
30
No
No SVHC
51 mΩ
800 mA
Compliant
8504500000, 8504500000|8504500000, 8504500000|8504500000|8504500000, 8504500000|8504500000|8504500000|8504500000
8 GHz
51 mΩ
Unshielded
SMD/SMT
100 MHz
793.786648 µg
500 µm
