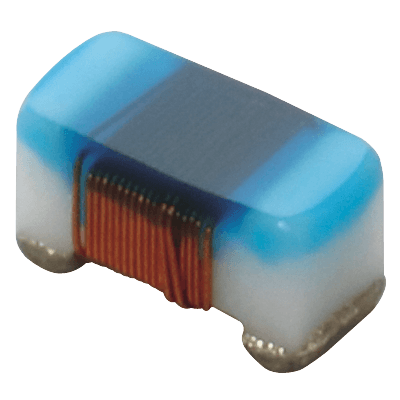

LQW15AN13NG00D
Manufacturer
Murata
Description
Inductor RF Chip Wirewound 13nH 2% 100MHz 25Q-Factor 430mA 210mOhm DCR 0402 Paper T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Core Material
Current
Current Rating
DC Current
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Packaging
Q Factor
Radiation Hardening
RMS Current (Irms)
RoHS
Schedule B
Self Resonant Frequency
Series Resistance
Shielding
Termination
Test Frequency
Tolerance
Weight
Width
Description
0402
0402
1005
Wirewound
Non-Magnetic
370 mA
430 mA
430 mA
210 mΩ
700 µm
500 µm
609.6 µm
13 nH
Lead Free
1 mm
Production (Last Updated: 1 month ago)
IN PRODUCTION (Last Updated: 1 month ago)
430 mA
125 °C
Not
-55 °C
Surface Mount
Cut Tape (CT)
25
No
430 mA
Compliant
8504500000, 8504500000|8504500000, 8504500000|8504500000|8504500000, 8504500000|8504500000|8504500000|8504500000
5 GHz
210 mΩ
Unshielded
SMD/SMT
100 MHz
2 %
793.786648 µg
508 µm
In Stock
Quantity
MOQ : 7
Per Unit Price
₹15.12
Total Price
₹105.81
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹105.81
₹105.81
10
₹10.47
₹104.66
25
₹9.48
₹236.97
50
₹9.50
₹474.83
100
₹7.35
₹735.37
500
₹6.61
₹3304.55
1000
₹6.61
₹6609.08
