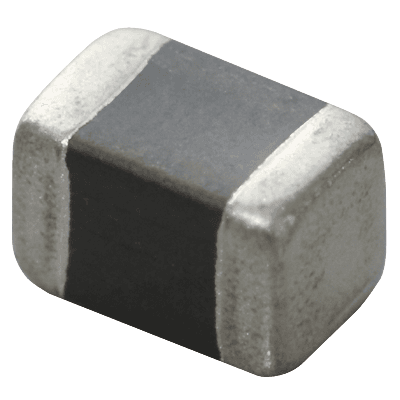

LQM21FN4R7N00L
Manufacturer
Murata
Description
Inductor Power Chip Shielded Multi-Layer 4.7uH 30% 1MHz Ferrite 0.08A 0.39Ohm DCR 0805 T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Core Material
Current Rating
DC Current
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Packaging
Radiation Hardening
Resistance
RMS Current (Irms)
RoHS
Saturation Current
Schedule B
Self Resonant Frequency
Series Resistance
Shielding
Termination
Test Frequency
Tolerance
Width
Description
0805
0805
2012
Ferrite
80 mA
80 mA
300 mΩ
1.45 mm
850 µm
1.4478 mm
4.7 µH
Lead Free
2 mm
Production (Last Updated: 2 months ago)
IN PRODUCTION (Last Updated: 2 months ago)
80 mA
85 °C
Not
-40 °C
Surface Mount
Tape & Reel (TR)
No
390 mΩ
80 mA
Compliant
80 mA
8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000
25 MHz
390 mΩ
Shielded
SMD/SMT
1 MHz
30 %
1.25 mm
In Stock
Quantity
MOQ : 4
Per Unit Price
₹29.34
Total Price
₹117.38
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹117.38
₹117.38
10
₹21.70
₹216.97
25
₹21.64
₹541.08
