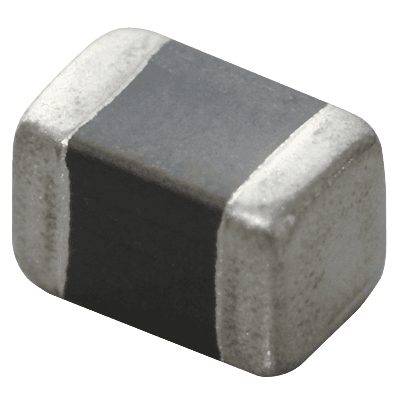

LQM21FN4R7M70L
Manufacturer
Murata
Description
Ind Power Chip Shielded Multi-Layer 4.7uH 20% 1MHz Ferrite 120mA 0805 Embossed T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Core Material
Current Rating
DC Current
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Packaging
Radiation Hardening
RoHS
Saturation Current
Schedule B
Self Resonant Frequency
Shielding
Termination
Test Frequency
Tolerance
Width
Description
0805
0805
2012
Ferrite
120 mA
120 mA
350 mΩ
1.45 mm
1.45 mm
1.4478 mm
4.7 µH
Lead Free
2.0066 mm
NRND (Last Updated: 1 month ago)
NRND (Last Updated: 1 month ago)
120 mA
125 °C
Not
-55 °C
Surface Mount
Cut Tape
No
Compliant
120 mA
8504500000, 8504500000|8504500000, 8504500000|8504500000|8504500000, 8504500000|8504500000|8504500000|8504500000
25 MHz
Shielded
SMD/SMT
1 MHz
20 %
1.2446 mm
