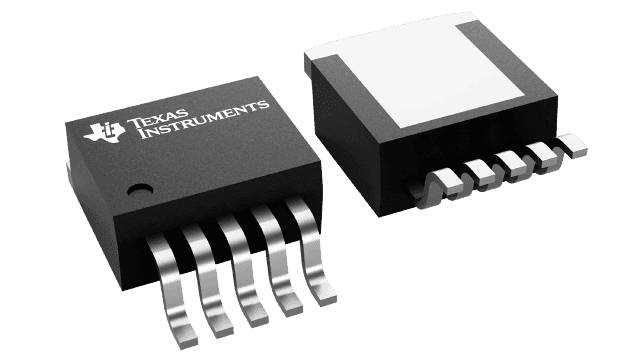

LP3964ES-ADJ
Manufacturer
Texas Instruments
Description
Adjustable Positive LDO Regulator, 1.216V Min, 5.1V Max, 0.35V Dropout, CMOS, PSSO5
Datasheet
DownloadProduct Attributes
Type
Accuracy
Case/Package
Current Rating
Height
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Input Voltage
Max Operating Temperature
Max Output Current
Max Output Voltage
Max Supply Current
Max Supply Voltage
Min Current Limit
Min Input Voltage
Min Operating Temperature
Min Output Voltage
Min Supply Voltage
Mount
Number of Outputs
Number of Pins
Number of Regulators
Output Configuration
Output Current
Output Type
Output Voltage
Output Voltage Accuracy
Polarity
Quiescent Current
REACH SVHC
RoHS
Termination
Thickness
Width
Description
1.5 %
TO-263
800 A
4.83 mm
Contains Lead
10.16 mm
Production (Last Updated: 7 months ago)
LIFEBUY (Last Updated: 7 months ago)
7 V
125 °C
800 mA
5.1 V
15 mA
7 V
1.2 A
2.5 V
-40 °C
1.216 V
2.5 V
Surface Mount
1
5
1
Positive
800 mA
Adjustable
5 V
1.5 %
Positive
9 mA
No SVHC
Non-Compliant
SMD/SMT
4.58 mm
8.42 mm
