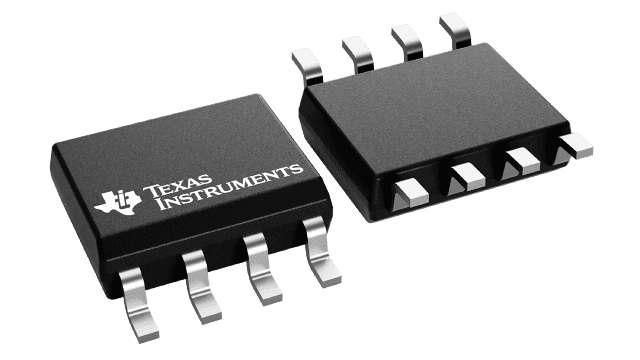

LM5109BSD/NOPB
Manufacturer
Texas Instruments
Description
1-A, 100-V half bridge gate driver with 8-V UVLO and high noise immunity 8-WSON -40 to 125
Product Attributes
Type
Fall Time
Height
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Max Output Current
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Nominal Supply Current
Number of Channels
Number of Drivers
Number of Outputs
Number of Pins
Output Current
Propagation Delay
Quiescent Current
Radiation Hardening
REACH SVHC
Rise Time
RoHS
Schedule B
Thickness
Turn-Off Delay Time
Turn-On Delay Time
Width
Description
15 ns
800 µm
Lead Free
4 mm
Production (Last Updated: 4 days ago)
ACTIVE (Last Updated: 4 days ago)
125 °C
1 A
14 V
-40 °C
8 V
Surface Mount
1.8 mA
2
2
2
8
1 A
32 ns
200 µA
No
No SVHC
15 ns
Compliant
8542390000
800 µm
2 ns
2 ns
4 mm
