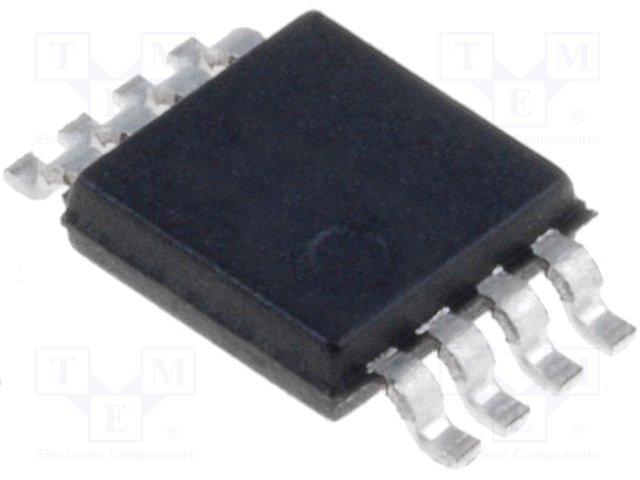

LM5085MY/NOPB
Manufacturer
Texas Instruments
Description
4.5-75V Wide Vin, Constant On-Time Non-Synchronous PFET Buck Controller 8-HVSSOP -40 to 125
Product Attributes
Type
Case/Package
Contact Plating
Duty Cycle
Height
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Duty Cycle
Max Frequency
Max Input Voltage
Max Operating Temperature
Max Output Current
Max Output Voltage
Max Supply Voltage
Min Input Voltage
Min Operating Temperature
Min Output Voltage
Min Supply Voltage
Mount
Number of Channels
Number of Outputs
Number of Pins
Output Current
Output Voltage
Packaging
Quiescent Current
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Switching Frequency
Thickness
Width
Description
MSOP
Tin
100 %
1.1 mm
Lead Free
3 mm
Production (Last Updated: 4 days ago)
ACTIVE (Last Updated: 4 days ago)
100 %
1 MHz
75 V
125 °C
10 A
75 V
75 V
4.5 V
-40 °C
1.25 V
4.5 V
Surface Mount
1
1
8
1.75 A
75 V
Tape & Reel (TR)
1.3 mA
No
No SVHC
Compliant
8542390000
1 MHz
1.02 mm
3 mm
