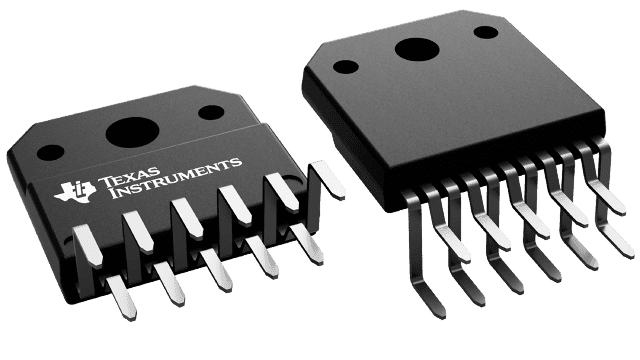

LM3886TF
Manufacturer
Texas Instruments
Description
68W, 1 Ch, 20-94V supply stereo Class-AB amplifier w/ Mute 11-TO-220 0 to 70
Datasheet
DownloadProduct Attributes
Type
Bandwidth
Case/Package
Common Mode Rejection Ratio
Gain
Gain Bandwidth Product
Height
Input Bias Current
Input Offset Voltage (Vos)
Length
Lifecycle Status
Load Impedance
Manufacturer Lifecycle Status
Max Dual Supply Voltage
Max Operating Temperature
Max Output Current
Max Output Power
Max Power Dissipation
Max Supply Voltage
Min Dual Supply Voltage
Min Operating Temperature
Min Supply Voltage
Number of Amplifiers
Number of Channels
Number of Pins
Output Power
Power Dissipation
Power Supply Rejection Ratio (PSRR)
Quiescent Current
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Supply Type
Termination
Thickness
Voltage Gain
Weight
Width
Description
3 MHz
TO-220
85 dB
3 dB
8 MHz
4.62 mm
1 µA
10 mV
20.015 mm
Production (Last Updated: 2 days ago)
8 Ω
ACTIVE (Last Updated: 2 days ago)
42 V
85 °C
11.5 A
68 W
125 W
84 V
10 V
-20 °C
20 V
1
1
11
68 W
125 W
120 dB
85 mA
No
No SVHC
Non-Compliant
8542330000
Dual, Single
Through Hole
4.496 mm
115 dB
8.164663 g
19.583 mm
