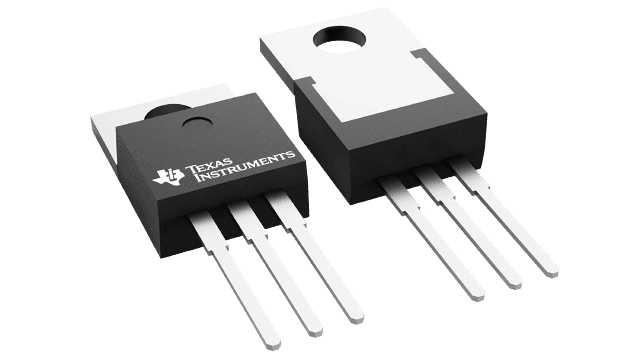

LM337T/NOPB
Manufacturer
Texas Instruments
Description
1.5-A, negative, adjustable linear voltage regulator 3-TO-220 0 to 125
Datasheet
DownloadProduct Attributes
Type
Case/Package
Contact Plating
Dropout Voltage
Height
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Input Voltage
Max Operating Temperature
Max Output Current
Max Output Voltage
Max Power Dissipation
Min Current Limit
Min Input Voltage
Min Operating Temperature
Min Output Voltage
Mount
Number of Channels
Number of Outputs
Number of Pins
Number of Regulators
Output Type
Output Voltage
Polarity
Power Dissipation
Power Supply Rejection Ratio (PSRR)
Quiescent Current
Radiation Hardening
REACH SVHC
Reference Voltage
RoHS
Schedule B
Thickness
Tolerance
Weight
Width
Description
TO-220
Tin
2.4 V
4.7 mm
14.986 mm
Production (Last Updated: 3 days ago)
ACTIVE (Last Updated: 3 days ago)
-50 V
125 °C
1.5 A
-37 V
20 W
1.5 A
-4.2 V
0 °C
-1.2 V
Through Hole
1
1
3
1
Adjustable
-37 V
Negative
20 W
77 dB
3 mA
No
No SVHC
-1.287 V
Compliant
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
4.572 mm
3 %
113.398093 g
10.16 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹208.07
Total Price
₹208.07
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹208.07
₹208.07
10
₹133.29
₹1332.91
25
₹133.31
₹3332.72
50
₹132.63
₹6631.48
100
₹116.25
₹11625.40
500
₹116.26
₹58128.78
1000
₹111.99
₹111989.40
