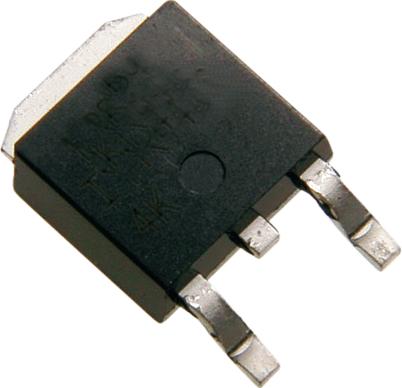

L78M05CDT-TR

Manufacturer

STMicroelectronics

Description

L78M Series 500 mA 5 V Three Terminal Positive Voltage LDO Regulator - TO-252

Datasheet

download datasheetDownload

Product Attributes

Type

Case/Package

Contact Plating

Dropout Voltage

Height

Lead Free

Length

Lifecycle Status

Max Input Voltage

Max Operating Temperature

Max Output Current

Max Output Voltage

Min Input Voltage

Min Operating Temperature

Min Output Voltage

Mount

Nominal Output Voltage

Number of Outputs

Number of Pins

Number of Regulators

Output Current

Output Type

Output Voltage

Packaging

Polarity

Power Supply Rejection Ratio (PSRR)

Quiescent Current

Radiation Hardening

REACH SVHC

RoHS

Schedule B

Tolerance

Weight

Width

Description

TO-252

Tin

2 V

2.4 mm

Lead Free

6.6 mm

Production (Last Updated: 2 years ago)

35 V

150 °C

500 mA

5 V

7 V

0 °C

5 V

Surface Mount

5 V

1

3

1

500 mA

Fixed

5 V

Cut Tape

Positive

62 dB

6 mA

No

No SVHC

Compliant

8542390000, 8542390000|8542390000, 8542390000|8542390000|8542390000, 8542390000|8542390000|8542390000|8542390000

5 %

4.535924 g

6.2 mm
