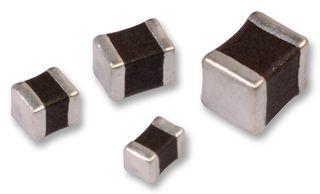

L0805C1R0MDWIT
Manufacturer
KEMET
Description
Ind Chip High Current Unshielded Wirewound 1uH 20% 7.96MHz Ferrite 840mA 0805 T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Core Material
Current Rating
DC Current
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Length
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Packaging
REACH SVHC
RoHS
Schedule B
Self Resonant Frequency
Shielding
Termination
Test Frequency
Tolerance
Width
Description
0805
0805
2012
Ceramic, Wirewound
Ferrite
700 mA
840 mA
190 mΩ
1.45 mm
1.25 mm
1.0414 mm
1 µH
2.1082 mm
620 mA
105 °C
Not
-40 °C
Surface Mount
Tape and Reel
No SVHC
Compliant
8504500000, 8504500000|8504500000, 8504500000|8504500000|8504500000, 8504500000|8504500000|8504500000|8504500000
100 MHz
Unshielded
SMD/SMT
7.96 MHz
20 %
1.4986 mm
