IXYP20N120C3
Manufacturer
IXYS
Description

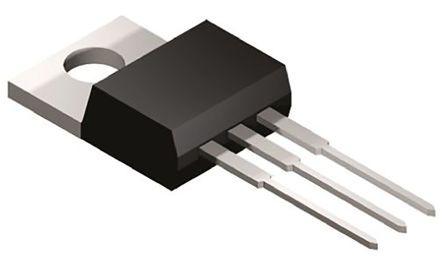

IXYP20N120C3 Series 1200 V 40 A High-Speed GenX3TM IGBT - TO-220AB
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Collector Emitter Breakdown Voltage
Collector Emitter Saturation Voltage
Collector Emitter Voltage (VCEO)
Element Configuration
Height
Lead Free
Length
Max Collector Current
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Power Dissipation
RoHS
Width
Description
TO-220-3
Non-Compliant
1.2 kV
4 V
1.2 kV
Single
16 mm
Lead Free
10.66 mm
40 A
175 °C
278 W
-55 °C
Through Hole
1
3
3
278 W
Compliant
4.82 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹620.66
Total Price
₹620.66
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹620.66
₹620.66
10
₹620.75
₹6207.51
25
₹620.77
₹15519.21
50
₹354.19
₹17709.31
100
₹327.30
₹32729.67
