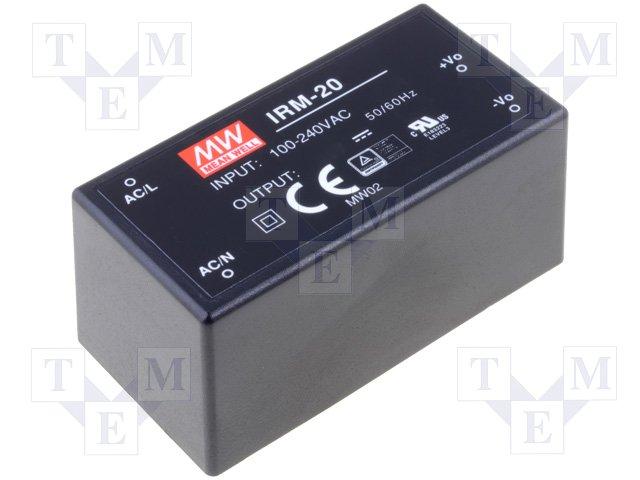

IRM-20-12

Manufacturer

Mean Well

Description

AC/DC 20W 12V Single Output Power Supply, Encapsulated Board Mount Module

Datasheet

download datasheetDownload

Product Attributes

Type

Approvals

Current - Output 1

Efficiency

Height

Lead Free

Length

Max Operating Temperature

Max Output Power

Max Power Dissipation

Max Supply Voltage

Min Operating Temperature

Min Supply Voltage

Mount

Nominal Supply Current

Number of Contacts

Number of Outputs

Number of Pins

Output Current

Output Power

Output Voltage

Packaging

RoHS

Switching Frequency

Voltage - Output 1

Voltage Rating (AC)

Voltage Rating (DC)

Weight

Width

Description

CB, CE, TUV, UL

1.8 A

84 %

24 mm

Lead Free

53 mm

70 °C

21.6 W

21.6 W

264 V

-30 °C

85 V

PCB, Through Hole

400 mA

4

1

4

1.8 A

21.6 W

12 V

Bulk

Compliant

100 kHz

12 V

264 V

12 V

59.000007 g

28 mm
