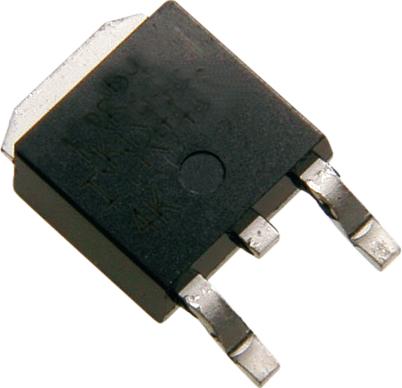

IRLR7843TRPBF
Manufacturer
Infineon
Description
MOSFET, 30V, 161A, 3.3 mOhm, 34 nC Qg, Logic Level, D-Pak
Datasheet
DownloadProduct Attributes
Type
Case/Package
Contact Plating
Continuous Drain Current (ID)
Current Rating
Drain to Source Breakdown Voltage
Drain to Source Resistance
Drain to Source Voltage (Vdss)
Element Configuration
Fall Time
Gate to Source Voltage (Vgs)
Height
Input Capacitance
Lead Free
Length
Lifecycle Status
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Nominal Vgs
Number of Channels
Number of Elements
Number of Pins
On-State Resistance
Package Quantity
Packaging
Power Dissipation
Radiation Hardening
Rds On Max
REACH SVHC
Recovery Time
Resistance
Rise Time
RoHS
Schedule B
Threshold Voltage
Turn-Off Delay Time
Turn-On Delay Time
Voltage Rating (DC)
Width
Description
DPAK
Tin
161 A
161 A
30 V
3.3 mΩ
30 V
Single
19 ns
20 V
2.2606 mm
4.38 nF
Lead Free
6.7056 mm
Obsolete (Last Updated: 2 years ago)
175 °C
175 °C
140 W
-55 °C
Surface Mount
2.3 V
1
1
3
3.3 mΩ
2000
Tape & Reel
140 W
No
3.3 mΩ
No SVHC
59 ns
3.3 MΩ
42 ns
Compliant
8541290080, 8541290080|8541290080, 8541290080|8541290080|8541290080, 8541290080|8541290080|8541290080|8541290080
2.3 V
34 ns
25 ns
30 V
6.22 mm
