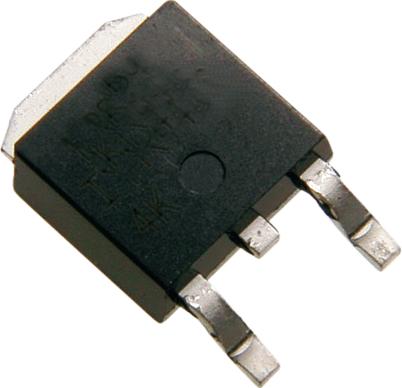

IRLR120NTRPBF

Manufacturer

Infineon

Description

MOSFET, 100V, 11A, 185 mOhm, 13.3 nC Qg, Logic Level, D-Pak

Datasheet

download datasheetDownload

Product Attributes

Type

Case/Package

Contact Plating

Continuous Drain Current (ID)

Current Rating

Drain to Source Breakdown Voltage

Drain to Source Resistance

Drain to Source Voltage (Vdss)

Dual Supply Voltage

Element Configuration

Fall Time

Gate to Source Voltage (Vgs)

Height

Input Capacitance

Lead Free

Length

Lifecycle Status

Max Junction Temperature (Tj)

Max Operating Temperature

Max Power Dissipation

Min Operating Temperature

Mount

Nominal Vgs

Number of Channels

Number of Elements

Number of Pins

On-State Resistance

Package Quantity

Packaging

Power Dissipation

Radiation Hardening

Rds On Max

REACH SVHC

Recovery Time

Resistance

Rise Time

RoHS

Schedule B

Termination

Threshold Voltage

Turn-Off Delay Time

Turn-On Delay Time

Voltage Rating (DC)

Width

Description

DPAK

Tin

10 A

11 A

100 V

225 mΩ

100 V

100 V

Single

22 ns

16 V

2.3876 mm

440 pF

Lead Free

6.7056 mm

Obsolete (Last Updated: 2 years ago)

175 °C

175 °C

48 W

-55 °C

Surface Mount

2 V

1

1

3

185 mΩ

2000

Tape & Reel

39 W

No

185 mΩ

No SVHC

160 ns

185 mΩ

35 ns

Compliant

8541290080, 8541290080|8541290080, 8541290080|8541290080|8541290080, 8541290080|8541290080|8541290080|8541290080

SMD/SMT

2 V

23 ns

4 ns

100 V

6.22 mm
