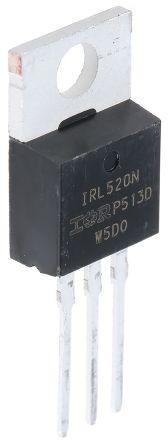

IRL520NPBF
Manufacturer
Infineon
Description
Mosfet, Power; N-ch; Vdss 100V; Rds(on) 0.18 Ohm; Id 10A; TO-220AB; Pd 48W; Vgs +/-16V
Datasheet
DownloadProduct Attributes
Type
Case/Package
Continuous Drain Current (ID)
Current Rating
Drain to Source Breakdown Voltage
Drain to Source Resistance
Drain to Source Voltage (Vdss)
Dual Supply Voltage
Element Configuration
Fall Time
Gate to Source Voltage (Vgs)
Height
Input Capacitance
Lead Free
Length
Lifecycle Status
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Nominal Vgs
Number of Pins
On-State Resistance
Package Quantity
Packaging
Power Dissipation
Rds On Max
REACH SVHC
Recovery Time
Resistance
Rise Time
RoHS
Schedule B
Termination
Threshold Voltage
Turn-Off Delay Time
Turn-On Delay Time
Voltage Rating (DC)
Width
Description
TO-220AB
10 A
10 A
100 V
180 mΩ
100 V
100 V
Single
22 ns
16 V
8.77 mm
440 pF
Lead Free
10.5156 mm
Production (Last Updated: 2 years ago)
175 °C
175 °C
48 W
-55 °C
Through Hole
2 V
3
180 mΩ
1000
Bulk
48 W
180 mΩ
No SVHC
160 ns
220 mΩ
35 ns
Compliant
8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080
Through Hole
2 V
23 ns
4 ns
100 V
4.69 mm
Product Attributes
Type
Case/Package
Continuous Drain Current (ID)
Current Rating
Drain to Source Breakdown Voltage
Drain to Source Resistance
Drain to Source Voltage (Vdss)
Dual Supply Voltage
Element Configuration
Fall Time
Gate to Source Voltage (Vgs)
Height
Input Capacitance
Lead Free
Length
Lifecycle Status
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Nominal Vgs
Number of Pins
On-State Resistance
Package Quantity
Packaging
Power Dissipation
Rds On Max
REACH SVHC
Recovery Time
Resistance
Rise Time
RoHS
Schedule B
Termination
Threshold Voltage
Turn-Off Delay Time
Turn-On Delay Time
Voltage Rating (DC)
Width
Description
TO-220AB
10 A
10 A
100 V
180 mΩ
100 V
100 V
Single
22 ns
16 V
8.77 mm
440 pF
Lead Free
10.5156 mm
Production (Last Updated: 2 years ago)
175 °C
175 °C
48 W
-55 °C
Through Hole
2 V
3
180 mΩ
1000
Bulk
48 W
180 mΩ
No SVHC
160 ns
220 mΩ
35 ns
Compliant
8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080
Through Hole
2 V
23 ns
4 ns
100 V
4.69 mm
