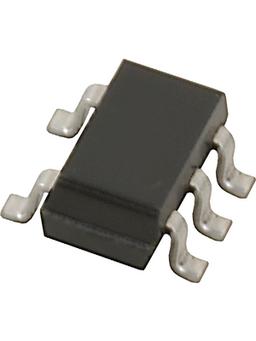

INA139NA/250
Manufacturer
Texas Instruments
Description
2.7 to 36V, 440kHz Variable gain current sense amplifier 5-SOT-23 -40 to 125
Product Attributes
Type
Accuracy
Bandwidth
Case/Package
Common Mode Rejection Ratio
Height
Input Bias Current
Input Offset Voltage (Vos)
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Input Voltage
Max Operating Temperature
Max Supply Voltage
Min Input Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Nominal Supply Current
Number of Amplifiers
Number of Channels
Number of Elements
Number of Pins
Operating Supply Current
Operating Supply Voltage
Packaging
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Termination
Thickness
Weight
Width
Description
0.5 %
440 kHz
SOT-23
100 dB
1.45 mm
10 µA
1 mV
Lead Free
2.9 mm
Production (Last Updated: 4 days ago)
ACTIVE (Last Updated: 4 days ago)
40 V
125 °C
40 V
2.7 V
-40 °C
2.7 V
Surface Mount
60 µA
1
1
1
5
125 µA
28 V
Cut Tape
No
No SVHC
Compliant
8542330000
SMD/SMT
1.2 mm
17.491656 mg
1.6 mm
