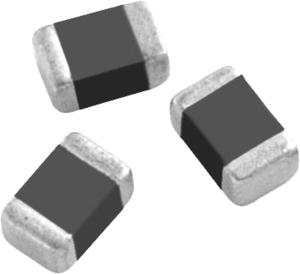

ILBB0805ER320V
Manufacturer
Vishay
Description
Ferrite Beads Multi-Layer 32Ohm 25% 100MHz 600mA 60mOhm DCR 0805 T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Core Material
Current Rating
DC Resistance (DCR)
Depth
Height
Impedance
Inductance
Lead Free
Length
Max Current Rating
Max DC Current
Max Operating Temperature
Min Operating Temperature
Mount
Number of Lines
Number of Pins
REACH SVHC
RoHS
Schedule B
Termination
Test Frequency
Tolerance
Width
Description
0805
0805
2012
Ferrite
600 mA
60 mΩ
1.45 mm
1.0922 mm
32 Ω
32 µH
Lead Free
2.0066 mm
600 mA
600 mA
125 °C
-55 °C
Surface Mount
1
2
Unknown
Compliant
8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000
SMD/SMT
100 MHz
25 %
1.2446 mm
