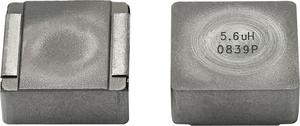

IHLP6767GZER8R2M11
Manufacturer
Vishay
Description
Inductor Power Shielded Wirewound 8.2uH 20% 100KHz Powdered Iron 21A 8.1mOhm DCR 6767 T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Composition
Core Material
Current Rating
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Lead Free
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Pins
Radiation Hardening
REACH SVHC
Resistance
RMS Current (Irms)
RoHS
Saturation Current
Schedule B
Self Resonant Frequency
Series Resistance
Shielding
Termination
Test Frequency
Tolerance
Width
Description
6767
Wirewound
Composite, Metal
21 A
8.1 mΩ
17.15 mm
7 mm
7.0104 mm
8.2 µH
20 %
Lead Free
18 A
125 °C
Not
-55 °C
Surface Mount
2
No
Unknown
7.71 mΩ
21 A
Compliant
18 A
8504500000, 8504500000|8504500000, 8504500000|8504500000|8504500000, 8504500000|8504500000|8504500000|8504500000
10 MHz
8.1 mΩ
Shielded
SMD/SMT
100 kHz
20 %
17.145 mm
