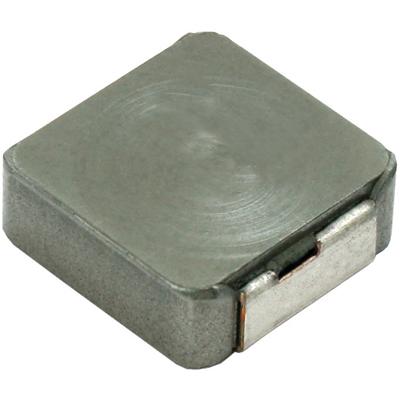

IHLP3232DZER4R7M01
Manufacturer
Vishay
Description
Inductor Power Shielded Wirewound 4.7uH 20% 100KHz Powdered Iron 7.25A 0.032Ohm DCR 3232 T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Composition
Contact Plating
Core Material
Current Rating
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Lead Free
Length
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Pins
Packaging
Radiation Hardening
REACH SVHC
RMS Current (Irms)
RoHS
Saturation Current
Schedule B
Self Resonant Frequency
Series Resistance
Shielding
Termination
Test Frequency
Tolerance
Width
Description
3232
Wirewound
Tin
Composite, Ferrite, Metal
7.25 A
32 mΩ
8.94 mm
4 mm
3.9878 mm
4.7 µH
20 %
Lead Free
8.89 mm
15 A
125 °C
Not
-55 °C
Surface Mount
2
Digi-Reel®
No
Unknown
7.25 A
Compliant
15 A
8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000
20 MHz
32 mΩ
Shielded
SMD/SMT
100 kHz
20 %
8.18 mm
