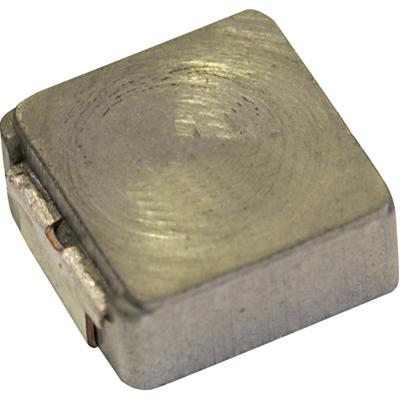

IHLP2525CZERR82M01
Manufacturer
Vishay
Description
Inductor Power Shielded Wirewound 820nH 20% 100KHz Powdered Iron 13A 8mOhm DCR 2525 T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Composition
Core Material
Current Rating
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Lead Free
Length
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Pins
Packaging
Radiation Hardening
REACH SVHC
Resistance
RMS Current (Irms)
RoHS
Saturation Current
Schedule B
Self Resonant Frequency
Series Resistance
Shielding
Termination
Test Frequency
Tolerance
Width
Description
2525
2525
Wirewound
Composite, Metal
13 A
8 mΩ
6.72 mm
3 mm
2.9972 mm
820 nH
20 %
Lead Free
6.86 mm
24 A
125 °C
Not
-55 °C
Surface Mount
2
Tape and Reel
No
Unknown
8 Ω
13 A
Compliant
24 A
8504500000, 8504500000|8504500000, 8504500000|8504500000|8504500000, 8504500000|8504500000|8504500000|8504500000
5 MHz
8 mΩ
Shielded
SMD/SMT
100 kHz
20 %
6.47 mm
Product Attributes
Type
Case/Package
Case Code (Imperial)
Composition
Core Material
Current Rating
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Lead Free
Length
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Pins
Packaging
Radiation Hardening
REACH SVHC
Resistance
RMS Current (Irms)
RoHS
Saturation Current
Schedule B
Self Resonant Frequency
Series Resistance
Shielding
Termination
Test Frequency
Tolerance
Width
Description
2525
2525
Wirewound
Composite, Metal
13 A
8 mΩ
6.72 mm
3 mm
2.9972 mm
820 nH
20 %
Lead Free
6.86 mm
24 A
125 °C
Not
-55 °C
Surface Mount
2
Tape and Reel
No
Unknown
8 Ω
13 A
Compliant
24 A
8504500000, 8504500000|8504500000, 8504500000|8504500000|8504500000, 8504500000|8504500000|8504500000|8504500000
5 MHz
8 mΩ
Shielded
SMD/SMT
100 kHz
20 %
6.47 mm
