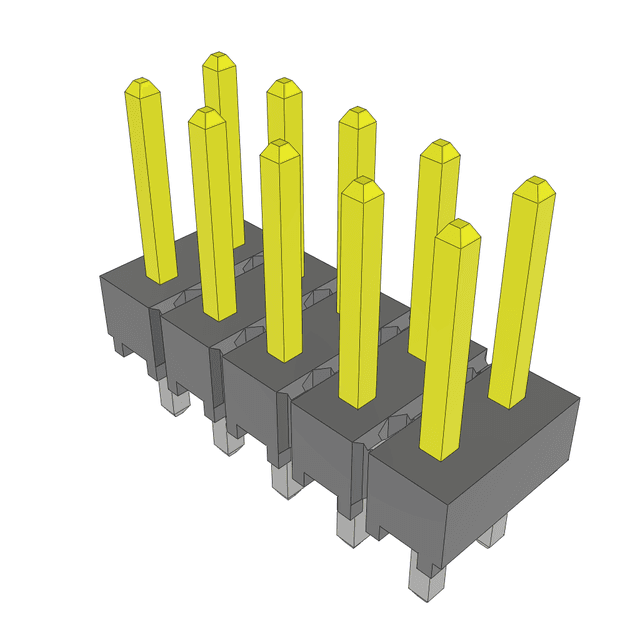

HTSW-105-07-F-D
Manufacturer
Samtec
Description
Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Top Entry Thru-Hole Bag
Datasheet
DownloadProduct Attributes
Type
Contact Material
Contact Plating
Depth
Gender
Housing Color
Housing Material
Lead Pitch
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Min Operating Temperature
Number of Contacts
Number of Rows
Orientation
Pitch
Radiation Hardening
REACH SVHC
RoHS
Row Spacing
Termination
Description
Bronze
Gold
5.02 mm
Male
Natural
Polymer
2.54 mm
12.7 mm
Production (Last Updated: 2 years ago)
PRODUCTION (Last Updated: 2 years ago)
7.6 A
125 °C
550 V
-55 °C
10
2
Straight
2.54 mm
No
No SVHC
Compliant
2.54 mm
Solder
Product Attributes
Type
Contact Material
Contact Plating
Depth
Gender
Housing Color
Housing Material
Lead Pitch
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Min Operating Temperature
Number of Contacts
Number of Rows
Orientation
Pitch
Radiation Hardening
REACH SVHC
RoHS
Row Spacing
Termination
Description
Bronze
Gold
5.02 mm
Male
Natural
Polymer
2.54 mm
12.7 mm
Production (Last Updated: 2 years ago)
PRODUCTION (Last Updated: 2 years ago)
7.6 A
125 °C
550 V
-55 °C
10
2
Straight
2.54 mm
No
No SVHC
Compliant
2.54 mm
Solder
